tx edge
Broadcast-grade transport, protection and monitoring
Secure, resilient IP transport for the world's most demanding broadcasters, built and supported to Tier 1 standards.
tx edge is a software gateway that moves your most valuable live content anywhere, encrypted, resilient and monitored. It protects and monitors broadcast content between facilities, in and out of the cloud, and between other software transformation processes, so Tier 1 broadcasters can trust IP the same way they trusted satellite and SDI.
tx edge supports UDP, RTP, SRT, RIST, ZIXI (receiver 1.12), RTMP, VTTP and HLS inputs and UDP, RTP, SRT, ZIXI (feeder 1.14), RIST, HLS and VTTP outputs. tx edge supports 2022-7 input protection from RTP, SRT and ZIXI inputs, dual 2022-7 output creation with independent path delay and threshold based input failover to both active and passive sources. Each service passing through tx edge is subject to a full ETSI TR 101 290 analysis and has a thumbnail extracted. tx edge can be deployed on bare metal, virtualised or as containers. tx edge instances are monitored and controlled through by a tx core server.
What tx edge delivers
Trust and demarcation
A trusted boundary between the functional and organisational domains it connects.
Consistent integration point
One highly efficient API surface for high-scale deployments across your estate.
Underwritten Performance
Built from the ground up, not assembled from open-source libraries, so performance, security and interoperability are underwritten, not best-effort.
Design and Support
Focused design and 24x7 support, purpose-built for Tier 1 broadcast, backed by Techex's experience delivering the highest-scale, most critical broadcast handoff architectures.
Why tx edge?
Broadcast-native code
RTP, SMPTE 2022-7, ETR 290 and BISS-2 built in-house
No FFmpeg or GStreamer dependency
Performance and interoperability underwritten
Trusted in Tier 1 contribution and distribution
Secure and resilient
AES-256 and BISS-2 included, no third-party DRM
OWASP ASVS Level 3, SMPTE RP2129 trust boundary
Headless, outbound-only on port 443
Seamless 2022-7 protection and prioritised failover
In-house broadcast code, with security and resilience included as standard. Underwritten, not best-effort.
Product Principles
Reliability
Low-level, in-house written code, avoiding generic open-source media libraries.
Security
Security and code integrity built into our culture and architecture, not bolted on.
IaC
Pipeline-delivered infrastructure and native container support.
Redundancy
Advanced broadcast-grade redundancy options as standard.
Monitoring
Probe-grade monitoring, including ETSI TR 101 290 Priority 1, 2 and 3.
Design and support
Expert design backed by expert 24x7 support.
Observability
Deep native telemetry integrations, including Grafana, Skyline DataMiner, InfluxDB, Datadog and Splunk.
Efficiency, Sustainability & FinOps
Highly optimised code for the lowest possible compute footprint.
Trust Boundary
SMPTE RP2129 media firewall, monitoring, protection, traffic control and replication.
Built for Tier-1 Broadcasters
Contribution and Distribution
Operators moving high-value live feeds between sites, venues and the cloud over IP.
Ground <> Cloud Workflows
Teams pushing live content into and out of cloud production and playout.
Existing Techex platform users
Already running tx core or tx darwin, and looking for the same engine for transport.
Security-critical media
Organisations that need encrypted, accredited transport without third-party DRM.

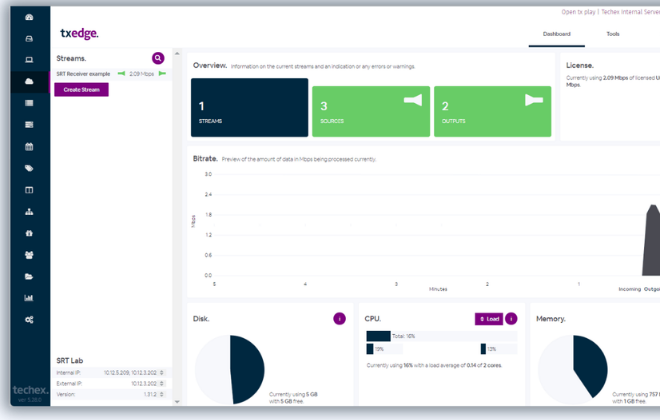

Intuitive interface
tx edge is cross-platform and fast to deploy, on a server or in the cloud.

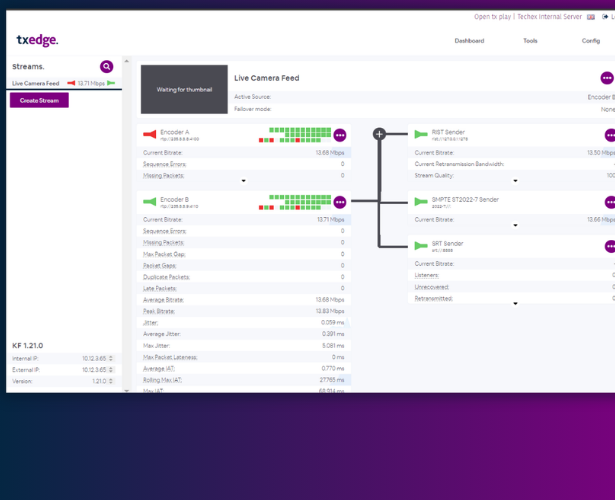

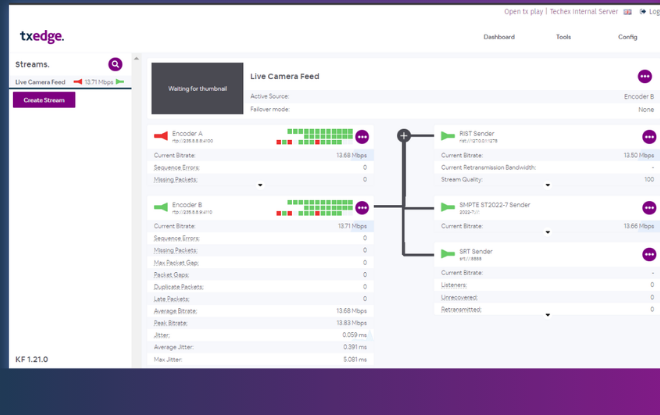

Control each tx edge device from the central tx core control interface, which offers a dynamic, authenticated web interface and a full API. Manage tx edge with a simple, user-centric interface designed for dynamic deployments, and manage tx edge deployments from a single place. tx edge gives you real-time information on every stream, including online state, IP errors, MPEG errors (ETR 290) and network loss.
Detailed Monitoring
Programmatically create new streams, and add and edit user accounts and streaming parameters. tx edge uses the latest BISS-2 secure encryption, backed by a flexible permissions engine to define what actions a user can perform. Optional integration with LDAP, SAML and Azure AD provides enterprise integration and two-factor authentication. Running on a lightweight, stable Linux platform, tx edge is supplied as software (VM, Docker, Linux install files), or as a pre-installed, performance-certified server. It can also run on Windows or Mac OS.
Input redundancy provides threshold-based failover across continuously monitored priority-weighted backup sources. Redundancy thresholds can be based on TS sync, bitrate, CC errors within a period, or unrecovered packets within a period.
tx edge captures packet statistics and can identify the top talkers in unsolicited incoming traffic. Combined with detailed monitoring, this makes tx edge a strong fault-finding and engineering tool, helping broadcasters and service providers deliver and receive content reliably over cheaper connectivity.

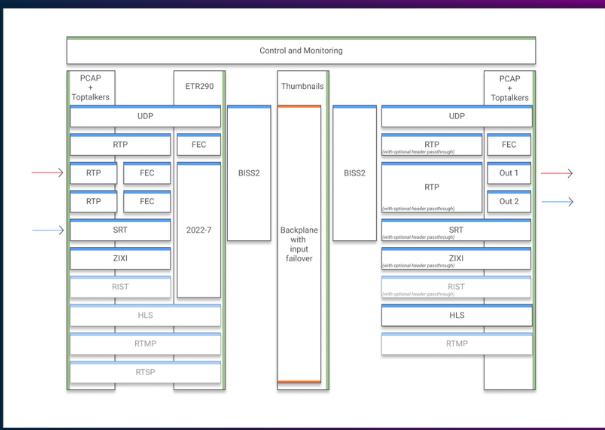

Functions

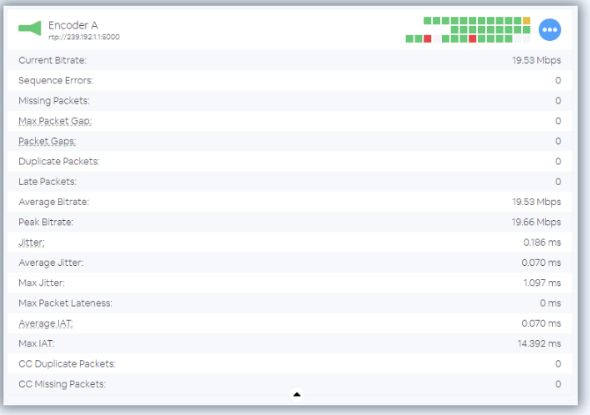

Take in UDP, RTP, SRT, ZIXI, RIST, RTMP, VTTP, HLS and 2022-7 and control the transport stream, with detailed statistics (missing, late, duplicate packets, bitrate and more) and built-in ETR 290 monitoring. Define priority levels per source stream, and failover types and triggers. tx edge maintains RTP integrity when using SRT, so 2022-7 seamless switching happens directly after, within tx edge or downstream on third-party broadcast equipment.
Its optimised implementation of SRT can deliver over 100Gbps of throughput per server, ideal for the broadcast market at scale.
tx edge is trusted by Tier 1 broadcasters and rights-holders delivering high-value content in an auditable, secure and reliable manner. tx edge reduces the cost of video transport, giving broadcasters the control and oversight they need.
Product Features
- Reliable, fixed latency ARQ delivery over networks with SRT, RIST and ZIXI
- SMPTE 2022-7 seamless input, with per-path statistics
- RTP header passthrough, allowing 2022-7 integrity to be maintained for downstream seamless protection
- BISS-2 scrambling and descrambling, with seamless odd/even key transition
- Threshold-based input redundancy, supporting passive or active backup sources
- XOR and output mute thresholds
- ETSI TR 101 290 Priority 1, 2 and 3
- Transparent null packet removal and replacement, to optimise data streams
- Grafana native driver for correlated monitoring
- REST API, with existing integrations with ATOS BNCS, Nevion iPath and Skyline DataMiner
- Skyline DataMiner, Splunk HEC and InfluxDB native integration for high-resolution timeseries statistics
- Debugging tools, including top talkers and PCAP
- Centralised control and monitoring, capable of controlling and remote-edging through firewalls
- High-availability, horizontally scalable, cluster-based control and monitoring, capable of managing hundreds of tx edges
- Support for local, LDAP, SAML and Azure AD authentication, including 2FA
- TS reader
- A licence model that flexes to match your deployment and commercial preferences
